ARC Technology

Module

LDR-075

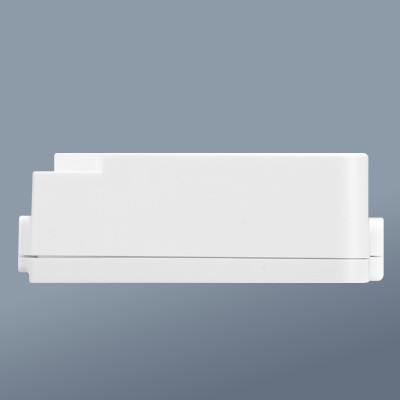

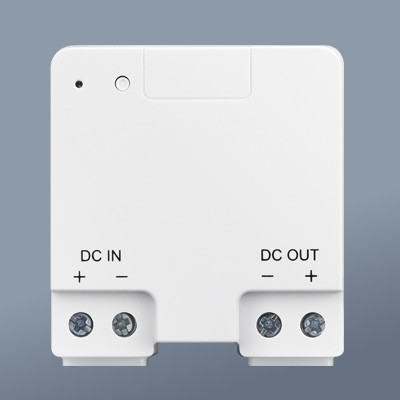

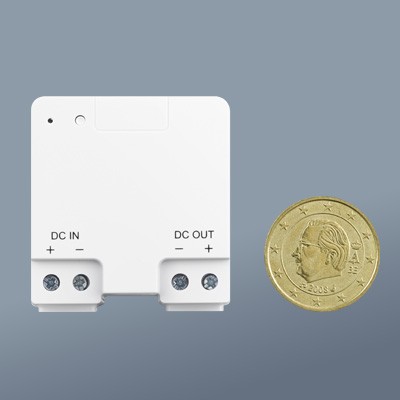

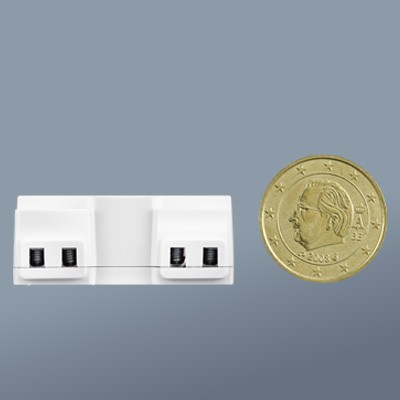

Dimmer Constant Voltage LED Module Receiver Dimmable constant voltage LED module receiver especially designed for single colour LEDs to be controlled wirelessly.

Minimum brightness setup. Easy wiring. 6 memory slots. Fits into standard wall box or inside light fittings.

Input Rating: 12VDC / 6.25A Max. 24VDC / 3.125A Max. Output Rating: ≦75W (12-24VDC) Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials).
