Module
MWMR-250

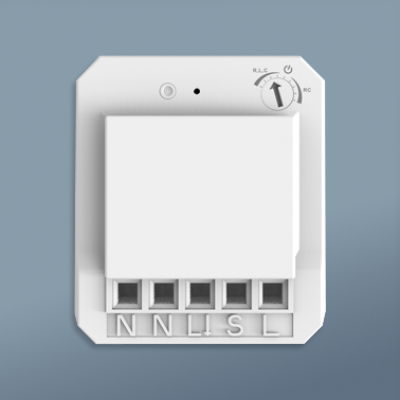

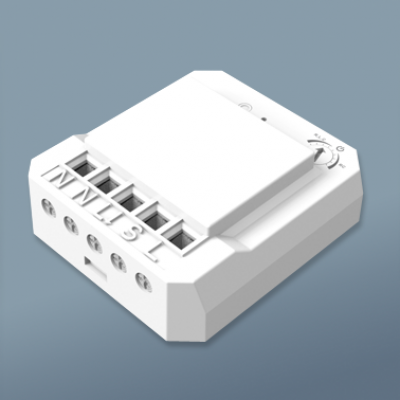

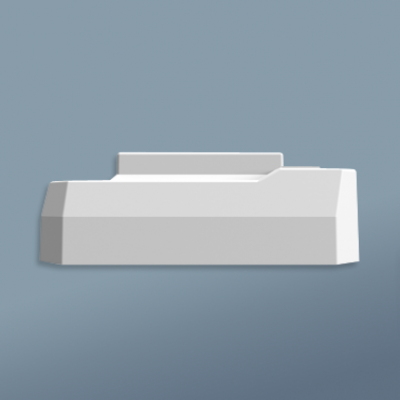

Remotely controlled 250W universal Mini Dimmer Wall Module is designed to control existing dimmable LED, dimmable energy saving lamp, incandescent lamp, 230V~ halogen lamp and 12V halogen lamp with inductive transformer or electronic transformer.
Compatible to L and M series. Operating mode of Trailing Edge or Leading Edge. Compatible with existing rocker switch for On / Off / Dimmer function. 2-way switching. Minimum brightness setup for different kinds of dimmer loads. 32 memories, first in first out storage maintain. Scene status memory, create your desired atmosphere. Fits into standard wall box.
Supported Load; 230V operated conventional incandescent and halogen light source. 12V electronic transformers. 12V inductive transformers. Dimmable and non-dimmable energy saving lamp. Dimmable and non-dimmable LED. Not compatible to: Fluorescent lamp Momentary / push button switch
Input Rating: 230V~50Hz Output Rating: 250W Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials).
