ARC Technology

Module

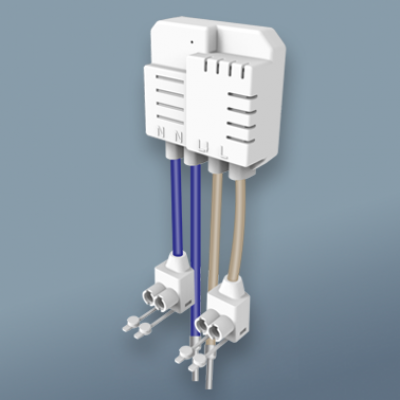

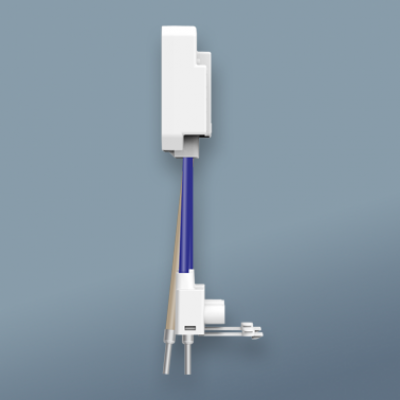

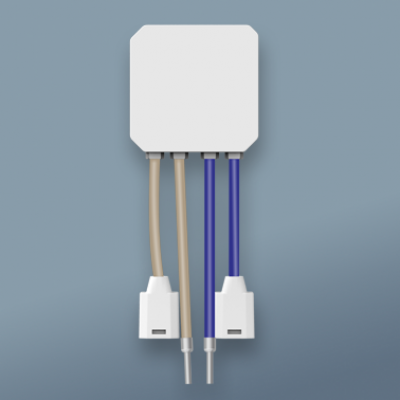

MSOR-3500

Unique high power 3500W (16A) mini socket wall module that can easily transform your existing wall socket into wireless control.

Compatible to L and M series. Easy wiring. 32 memories, first in first out storage maintain. Scene status memory, create your desired atmosphere. Fits into standard wall box or inside light fittings.

Input Rating: 230V~50Hz Output Rating: 16 Amps / 3500W Resistive Load. Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials).
