Module

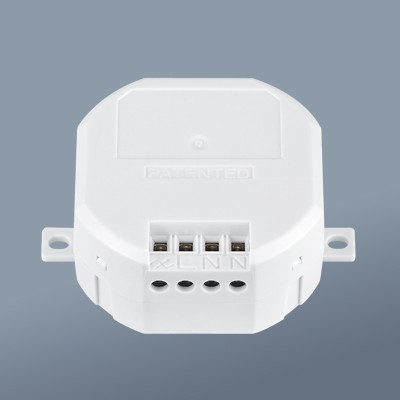

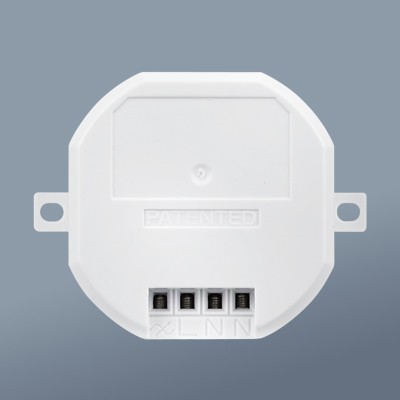

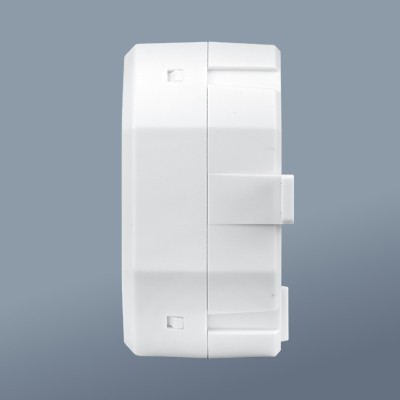

CMR-100
Universal dimmer module receiver controlling existing dimmable LED, dimmable energy saving lamp, incandescent lamp, 230V~ halogen lamp and 12V halogen lamp with inductive transformer or electronic transformer. With built-in 4 step rotary switch for adjusting the dim level accordingly to different brands of load(s).
200W Max. dimmer universal load control. Easy wiring. 6 memory slots. Fits into standard wall box or inside light fittings. ！Not compatible to fluorescent lamp.
Input Rating: 230V~50Hz Output Rating: Incandescent and Halogen Lamps (230V~): 20W-200W Max. Electronic Transformers (12V~) :20W-200W Max. Inductive Transformers (12V~) :40W-200W Max. Dimmable Energy Saving Lamp: 3W-24W Max. Dimmable LEDs: 3W-24W Max. Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC Range: Up to 50 Meter range (Depends on building materials).
