ARC Technology

BLE

HCPS-2102

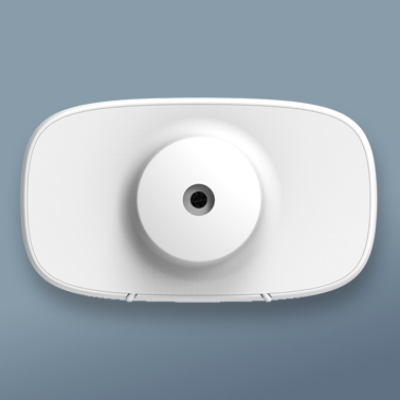

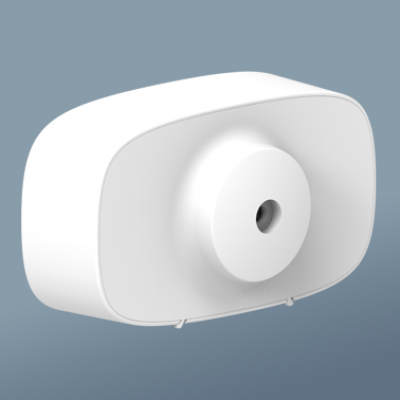

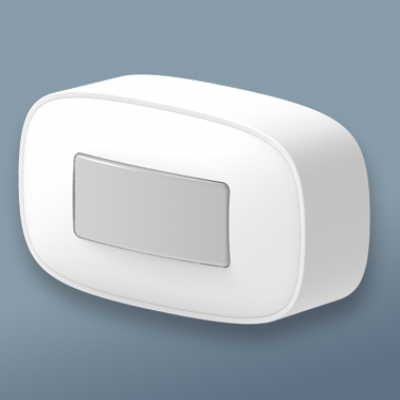

868 MHz motion sensor is designed along with the other in the Smart WiFi Home Center range to trigger any device in the home. Using the app to set up timers or scene and trigger the scene via app for this motion sensor.

Detects movements by passive infrared technology. Easy installation for detection of windows and doors or focus on certain rooms or the entire home/garage. Synchronize with other 433MHz devices; can realize ’ if you walk by, then turn On/Off lights’ scenes. Adjustable ‘ambient light level’ control (LUX). Unique wall/surface mount magnetic base for flexible installation in different angle. 4 Delay timer function – 5s, 1m, 5m, 10m. 3 Years battery life with battery low indication. Suggested PIR range at 6M / 90̊ @ 1.5M mounting height.

Battery: 3V CR2450 Lithium Cell Battery (included) Radio Frequency: 868 MHz Environment Temperature: 0-40 ºC
