ARC Technology

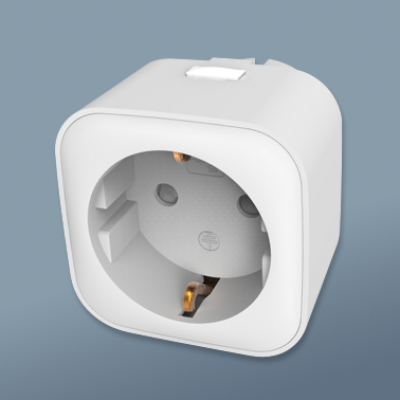

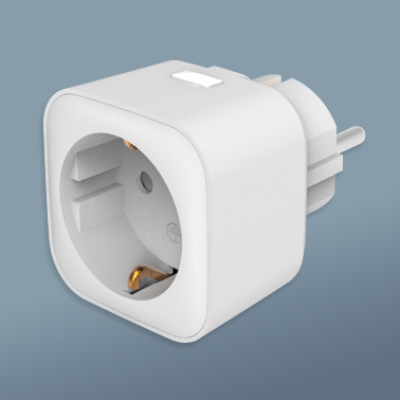

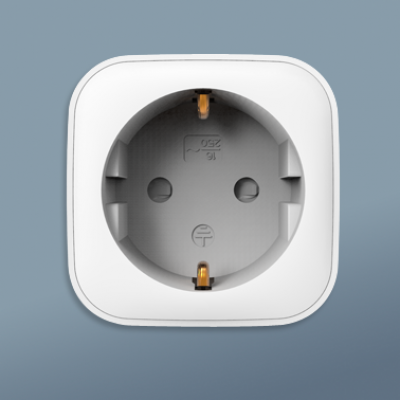

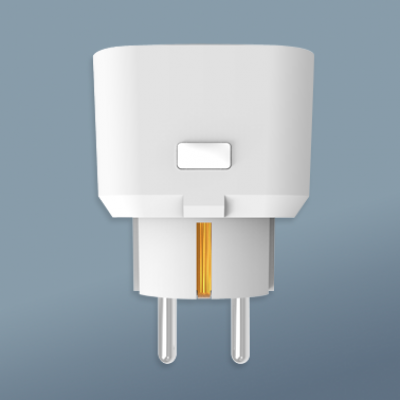

Plug-Adaptor

MYCR-250

Transform your electronic devices to wireless control with the compact socket switch plug. All you need to do is plug the socket switch into an electrical outlet, plug a device into the socket switch, and control your device wirelessly using a remote control.

Compatible to L and M series 250W dimmer universal load control Plugs into any regular electrical wall outlet. Built-in manual On & Off button with LED indication. Control mode of Trailing Edge or Leading Edge. Minimum brightness setup for different kinds of dimmer loads. 32 memories, first in first out storage maintain. Scene status memory, create your desired atmosphere.

Input Rating: 230V~50Hz Output Rating: “Trailing edge” for resistive loads (R) Conventional incandescent and halogen light source 20-250W / 230V~ “Trailing edge” for resistive-capacitive loads (RC) Electronic transformers 20-250W / 12V~ Dimmable LED and energy saving lamps 3-120W / 230V~ “Leading edge” for resistive-inductive loads (RL) Inductive transformers 40-250W / 12V~ Range: Up to 50 Meter range (Depends on building materials). Radio Frequency: 433.92MHz Power Consumption: <1W Environment Temperature: 0-40 ºC
